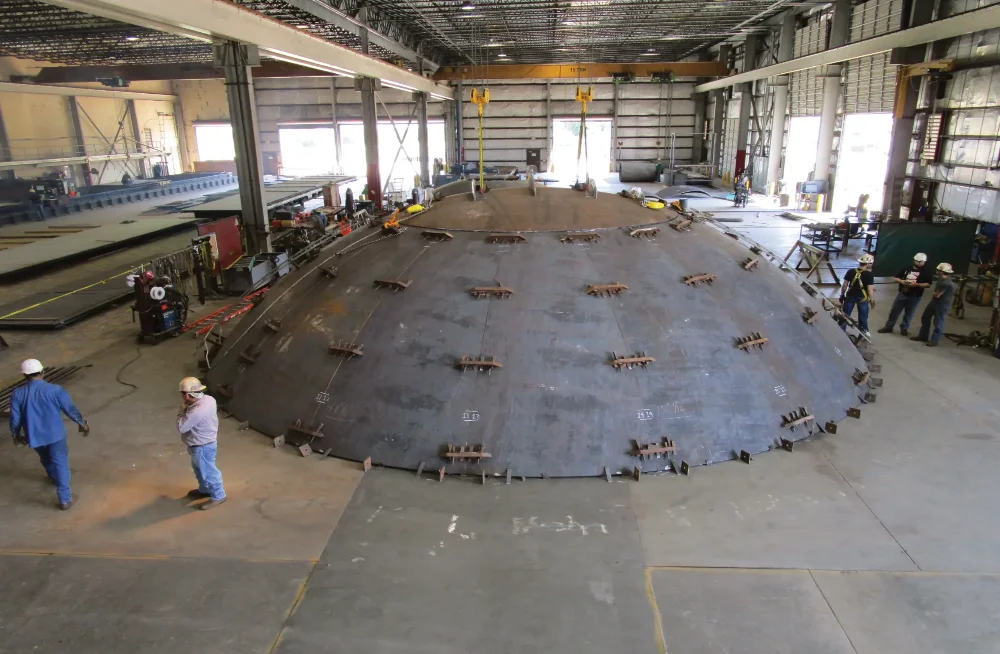

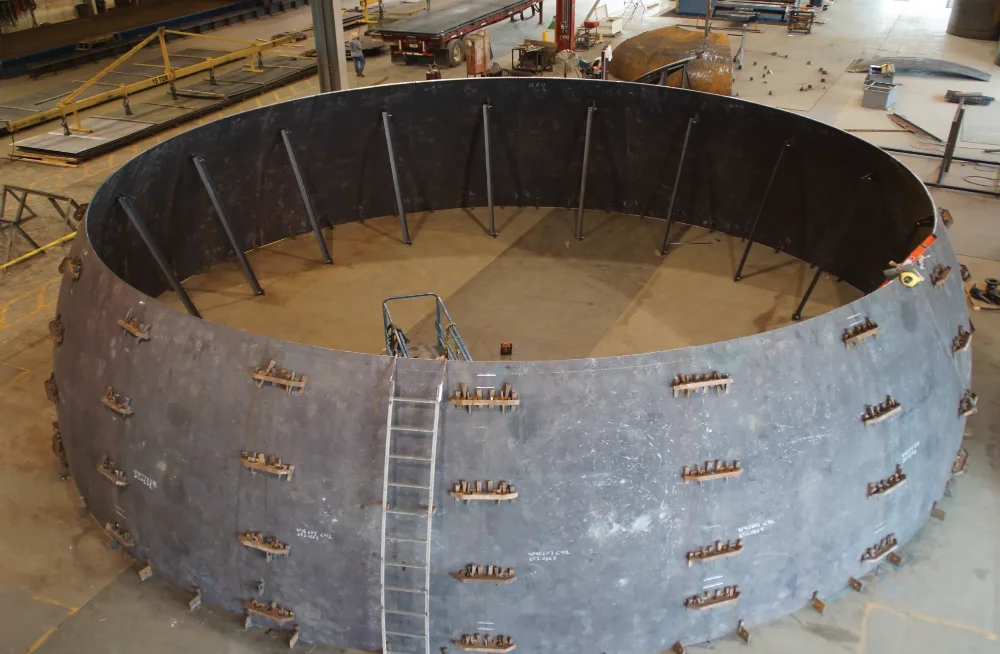

Custom Forming ASME Code Hemi Head

diameter hemi head
250 t
of steel


Location: Holly Springs, Mississippi
Industry: Petrochemical
Project owner: Owner: Contract Fabricators, Inc.
Landmark’s 1st custom forming project without pre-fitting

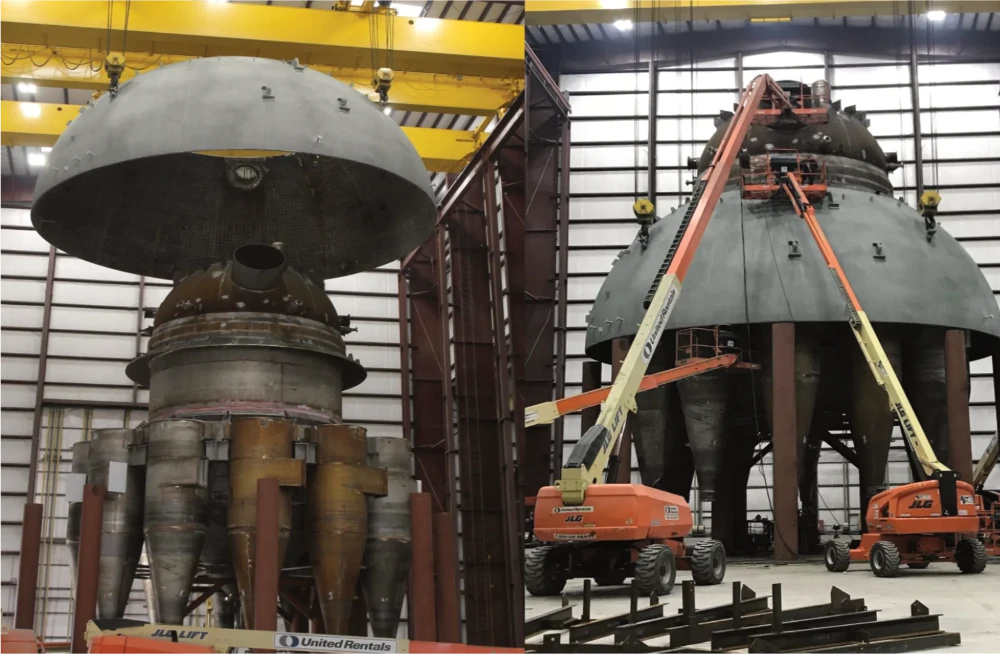

Contract Fabricators, Inc. required a large diameter ASME Code Hemispherical Head for a fluid catalytic cracker assembly at a Valero Refinery.

Project timing constraints did not allow typical pre-fitting at our fabrication facility, and exacting tolerances were specified.

Landmark designed a new fabrication process to eliminate pre-fitting and guarantee proper forming and fit during assembly at the client’s shop.

Operational Highlights:

  • Landmark quality management and steel fabrication teams were utilized to perform a high level of QA/QC inspections, and test planning.
  • Project tolerances were met with no rework required.
